Features

This product is a light and small lifting equipment, with a lifting capacity ranging from 250kq to 15000Kg. Mainly used in industrial and civilian power supply three-phase AC 380V-50Hz material lifting platforms. The electrical control adopts 36V low-voltage indirect control, and the operation, installation, and maintenance of the flashlight door are convenient, flexible, safe, and reliable.

This product is equipped with a mechanical overload clutch between 250kg and 2000kg, and a sensor type lifting limiter between 2500kg and 15000kg, which has a lifting overload limit protection function.

This product adopts a hidden color installation to raise and lower the electrical limit device, motor phase loss protection control and power loss protection control.

This product adopts a design where the center of the lifting ring coincides with the center of the lifting hook. When using a single chain, place the lifting ring at the position of the single chain lifting ring. When using a double chain, place the lifting ring at the position of the double chain lifting ring.

This product is small in size, light in weight, light in electricity and the host+- body design. The host adopts a flat Rectangular cuboid shape structure, smooth in rounded corners, compact in structure, low in operating noise, and smaller in hook spacing than other wire rope electric hoists and ring chain electric hoists of the same specification.

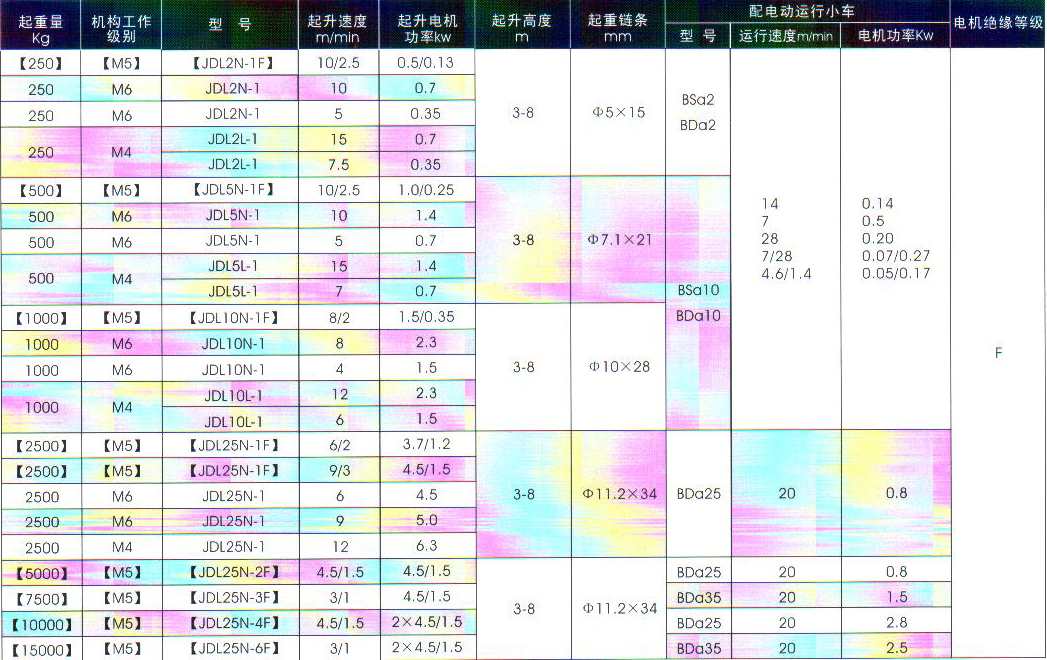

Technical parameters of JDL chain hoist:

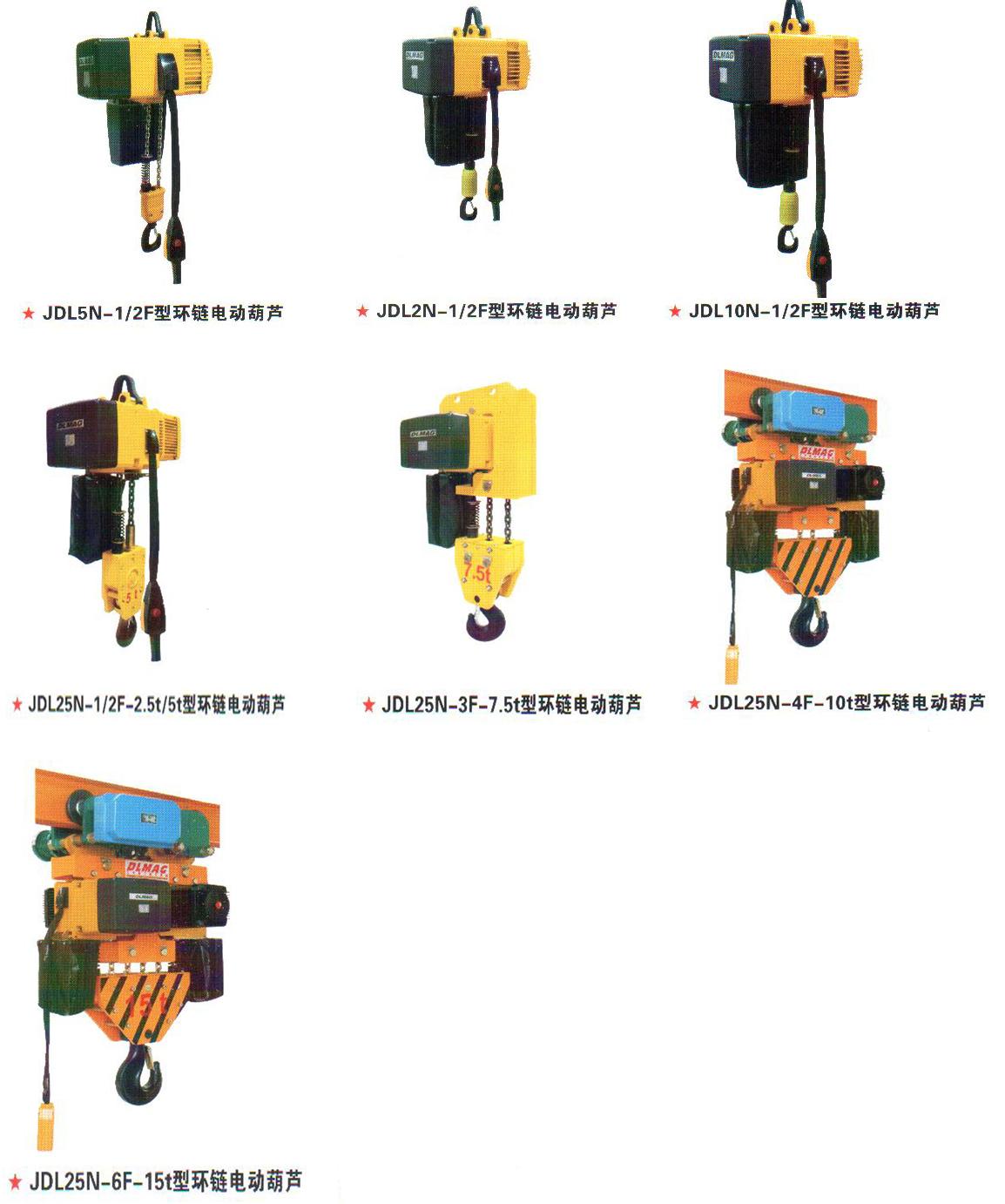

Specification Configuration

Success Cases
